IXRF Systems is an industry leader in x-ray microanalysis, providing XRF solutions to their customers over the past 2 decades. They approached Produktworks to help them design and develop their latest product line, the Atlas X and M micro-XRF spectrometers.

Clandestine has provided a variety of product development services to IXRF Systems on their Atlas X and M product lines.

By applying great industrial design and solid mechanical engineering, these products will help IXRF Systems solidify their reputation as a leader in the microanalysis industry for years to come.

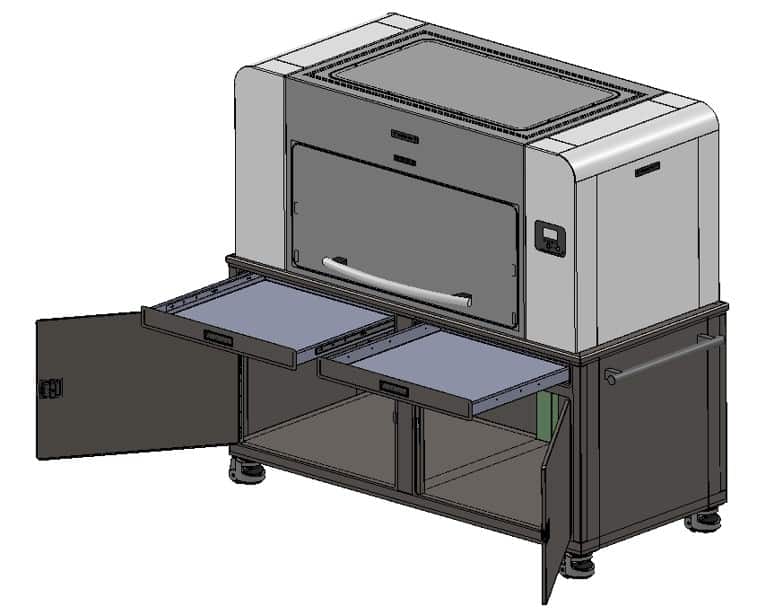

Atlas X & Atlas M Spectrometers


IXRF Systems


Industrial Design
Mechanical Engineering
Production Sourcing & Support

Industrial Design

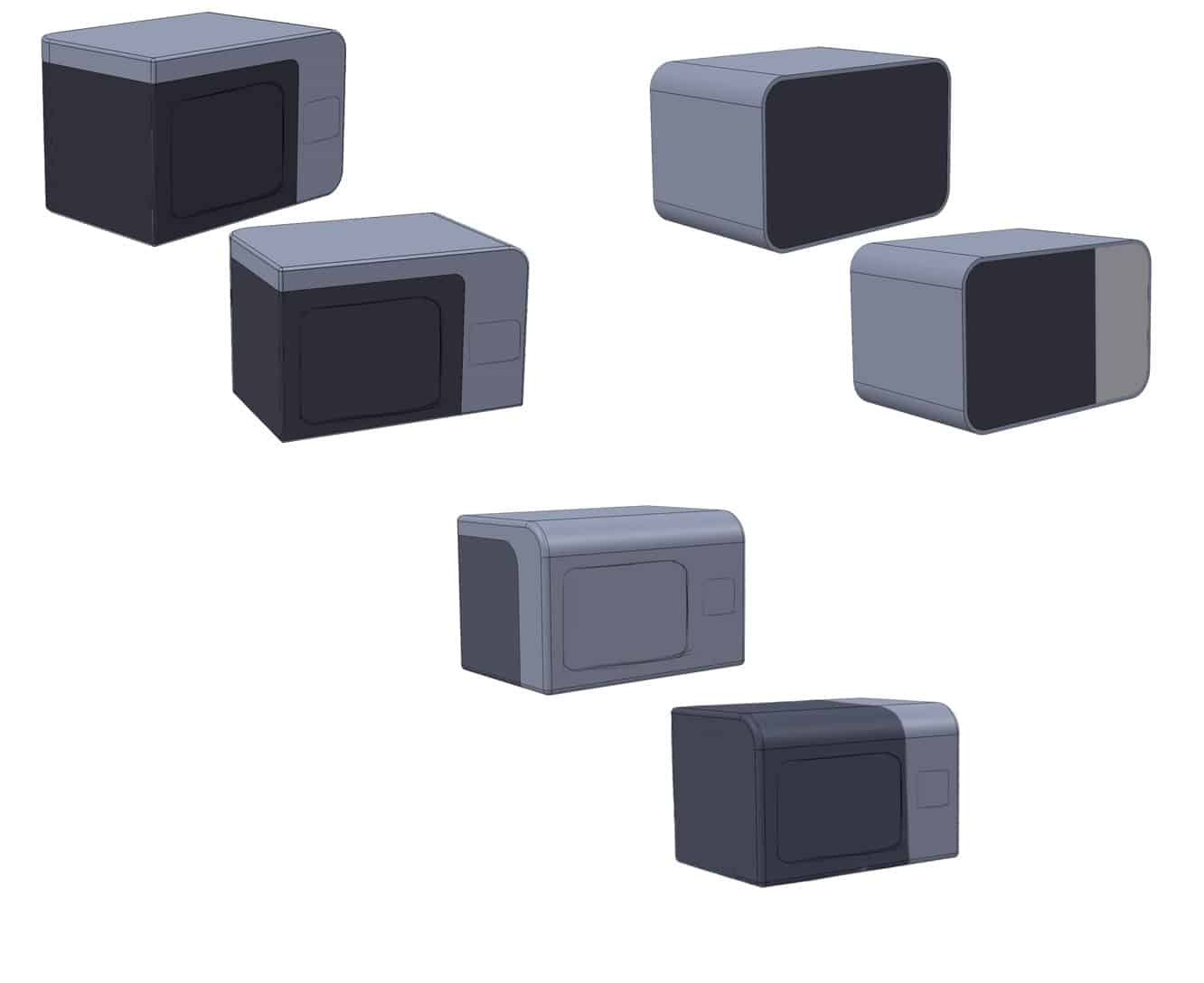

  • Initial Conceptualization
  • Brand Language Development

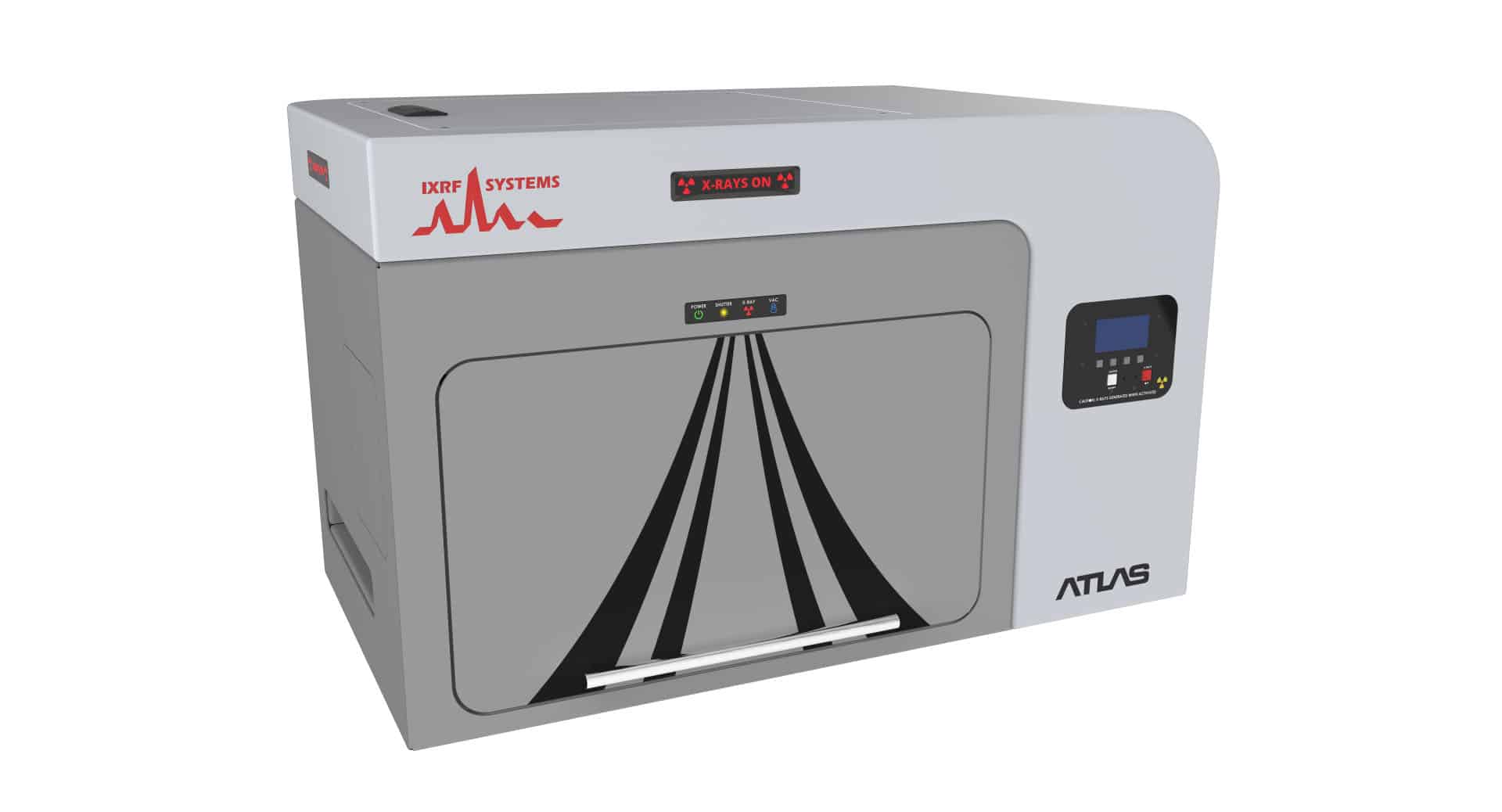

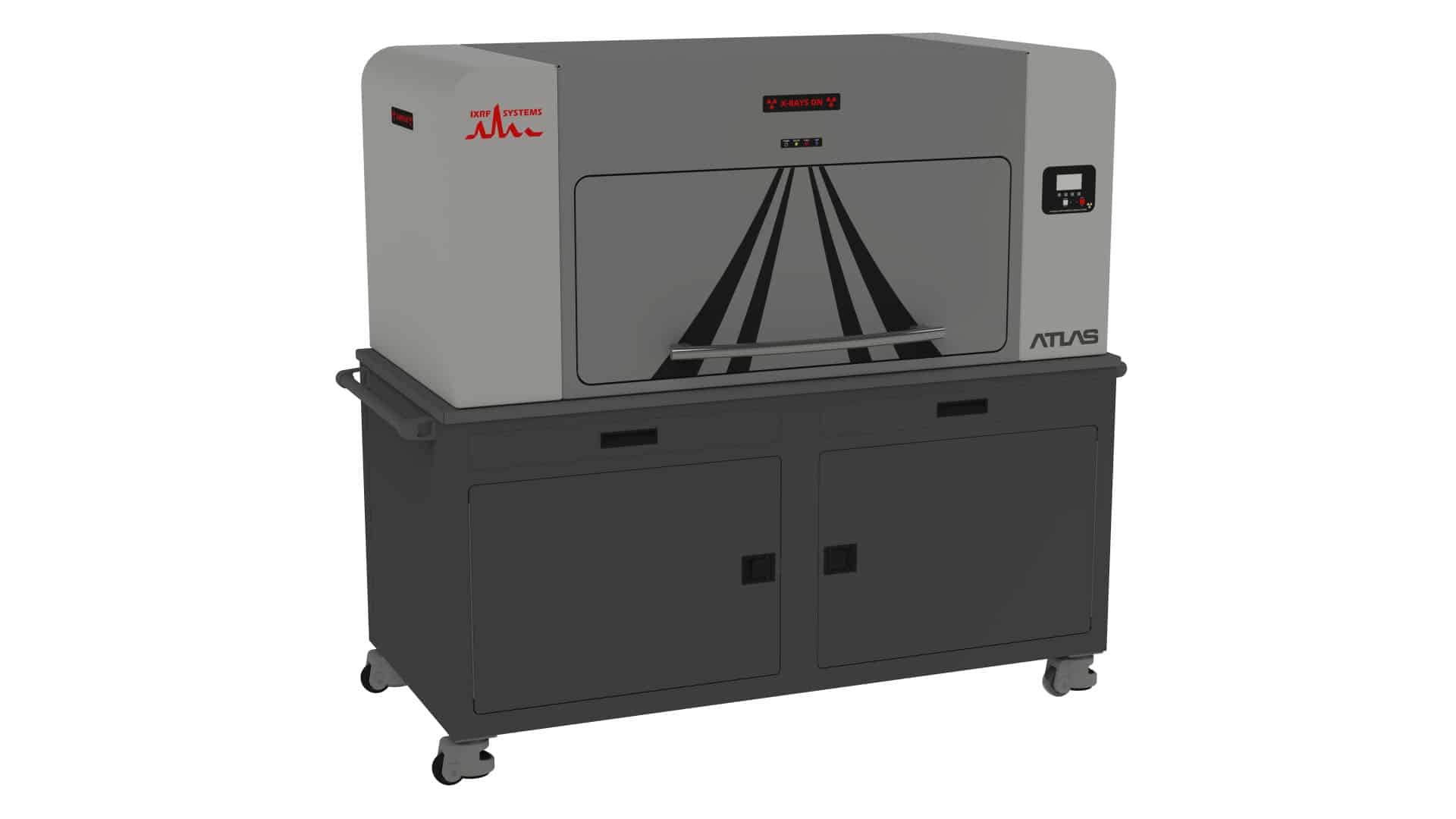

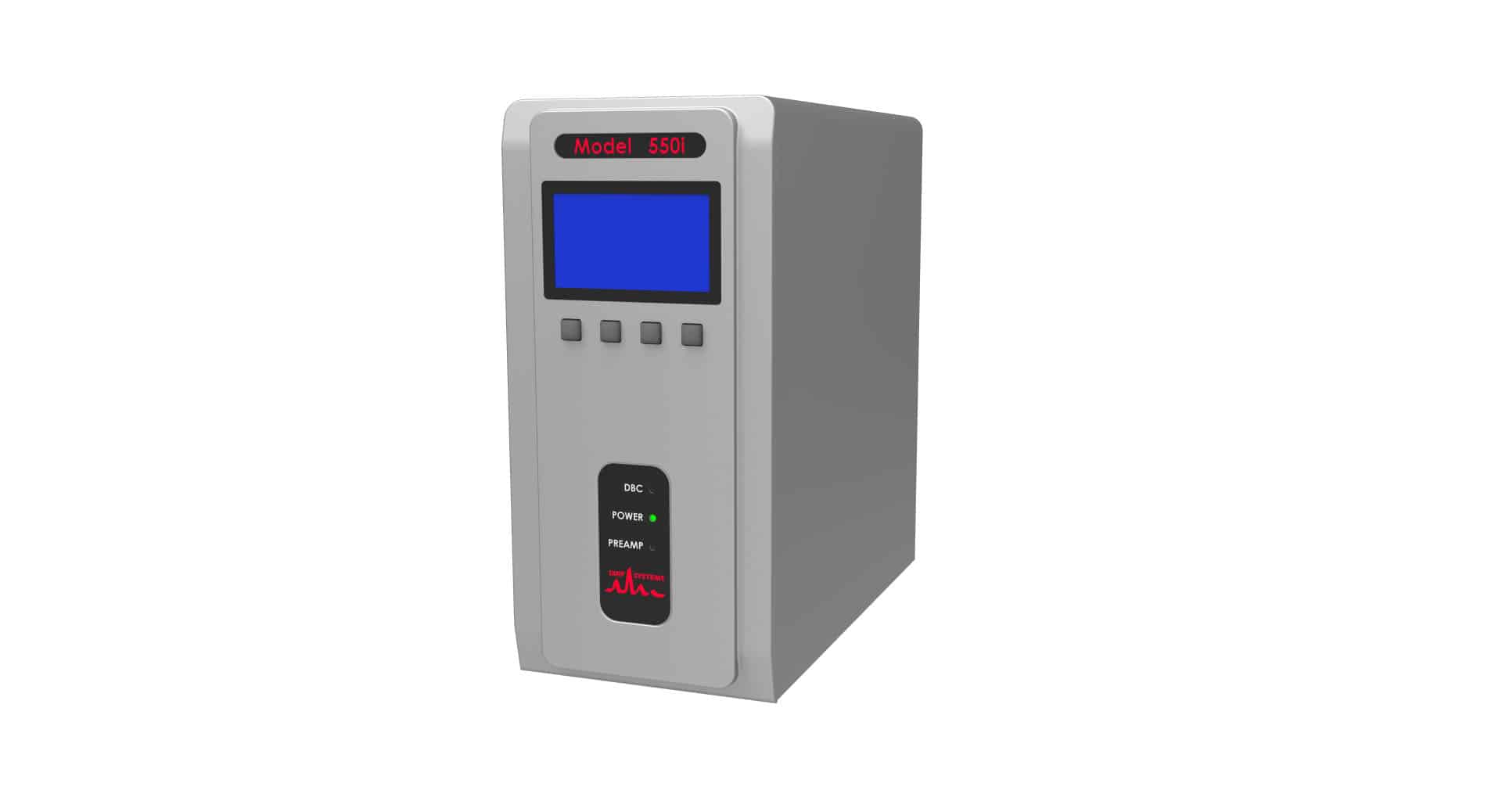

  • Photorealistic Renderings
  • Product Graphics

Mechanical Engineering

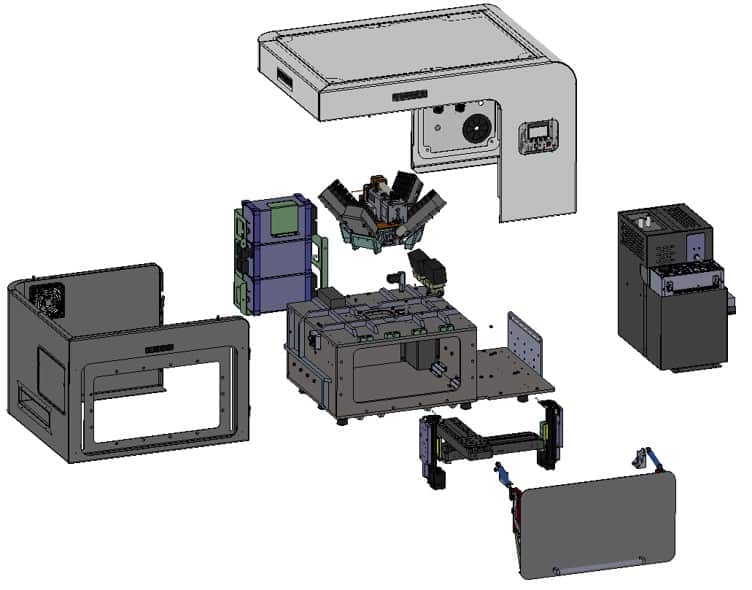

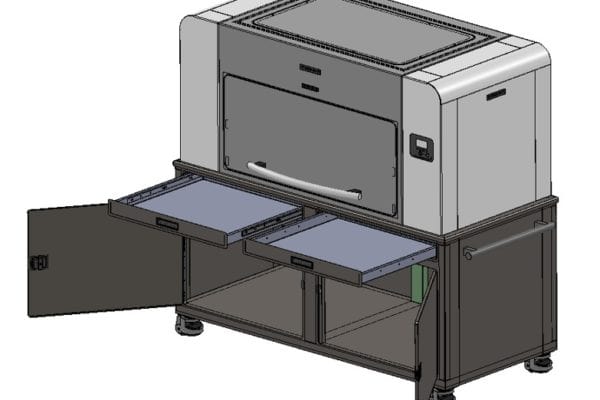

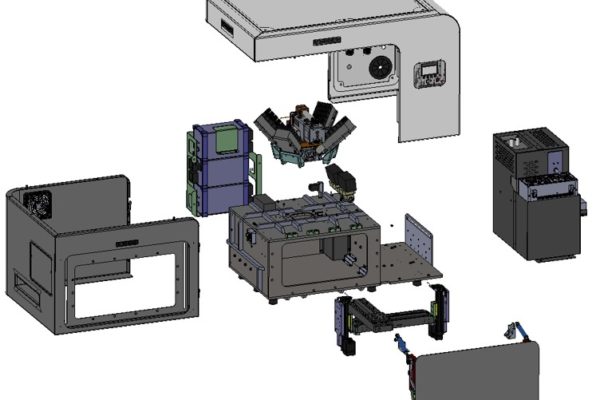

  • Mechanical CAD Development

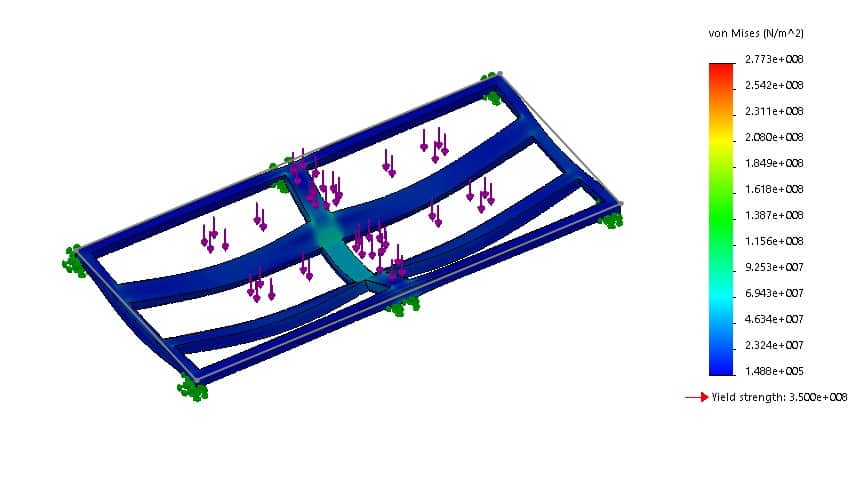

  • Finite Element Analysis
  • Design-for-Manufacturability
  • Prototyping
  • Production Sourcing & Support
